UWT
Radar sensors
NivoRadar® – NR 8000 Series| PTFE Antenna System
Application area
The NivoRadar® 8000 offers precise continuous level measurement of liquids, even under the most demanding process conditions. Equipped with a PTFE-encapsulated antenna and a robust flange connection, this radar sensor is the ideal solution for use with aggressive materials. All materials used are chemically resistant, ensuring long-lasting durability and reliable performance. Additionally, the sensor complies with strict SIL 2/3 guidelines and can be supplied in an intrinsically safe manner.
Your benefit
- Time-saving and easy commissioning via the UWT LevelApp, the integrated display, or PACTware
- Reliable and precise level measurement thanks to 80 GHz radar technology
- High durability through the use of chemically resistant materials for maximum resilience
Radar sensors
NivoRadar® – NR 3000 Series | Lens antenna
Application area
The NivoRadar® 3000 enables continuous level measurement of bulk solids under all process conditions. Equipped with a lens antenna and a stainless steel flange connection, this radar sensor delivers highly precise measurement results due to its narrow beam angle of only 3°, even at temperatures up to 250 °C. The adjustable flange allows for easy alignment in conical silo areas, ensuring the entire contents is reliably detected. Thanks to an integrated compressed air connection for cleaning the lens antenna, accurate level measurement can also be ensured in dusty environments.
Your benefit
- Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
- Reliable and precise measurement results thanks to 80 GHz radar technology
- Maintenance-free sensor for long-lasting and trouble-free level measurement
Radar sensors
NivoRadar® – NR 7000 Series
Application area
The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 7000 with a narrow beam angle of 8° is used in various industrial applications in storage silos, process tanks, IBC containers or open basins for continuous level measurement. The free-radiating level transmitter has a compact design with a 1 ½” process connection (PVDF) and a measuring range of up to 20 m as well as a very fast response time. The radar sensors are food compliant, WHG-certified and suitable for use in hazardous areas. The radar level transmitters can be used in aggressive media such as acids, alkalis and solvents as well as in highly viscous liquids and oils.
Your benefit
- Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
- Inexpensive and at the same time durable, robust and maintenance-free measurement technology
- Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp, optional Plug on Display
NivoTec® – NT 9000 | Local fill level display
Application area
The NivoTec NT 9000 is a local display unit for a 4…20 mA signal. The device is directly inserted into the signal line and functions as a display instrument for a 4…20 mA current loop. It can be combined with both passive two-wire and active four-wire sensors. The displayed value can be selected between the current or a scaled value (e.g., volume, mass, etc.).
Your benefit
- Visualisation of the level at easily accessible points
- Easy installation, suitable for outdoor use
- Compatible with connection to any 4…20 mA sensors (active or passive)

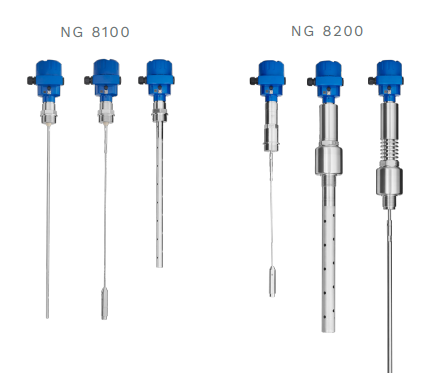

NivoGuide ® 8000
• Precise measurement values even in applications with buildup, foam formation or condensation
• Comprehensive diagnostic functions
• Second line of defense (optional)
• For use in tanks and pipes
• Coaxial version
Housing Aluminium IP 68, Stainless Steel
Certificates ATEX, IEC-Ex, FM, INMETRO,
TR-CU, UKEX, SIL 2
(Dust explosion-proof, Flameproof,
Intrinsically safe)
Measuring range Rod max. 6 m (236 inch)
Rope max. 75 m (2952 inch)
Process temp. -196 °C .. +450 °C
range (-321 °F .. +842 °F)
Pressure range -1 .. +400 bar
(-14.5 .. +5801.5 psig)
Sensitivity DK value ≥ 1.4
Supply 9,6..35 V DC,
voltage 2-wire
Meas. signal 4 – 20 mA / HART
Process Thread from G¾, ¾ NPT
connection Range of flanges
Process connect. Stainless Steel 1.4404 (SS316L) /
material 1.4435 (SS316L)
Material Stainless Steel 1.4404 (SS316L) /
Sonde 1.4401 (SS316), Coating PA
Isolation FKM / FFKM / EPDM /
Silicone FEP jacketed
Temperature version with ceramic
isolation

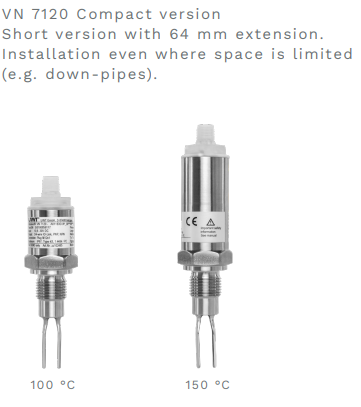

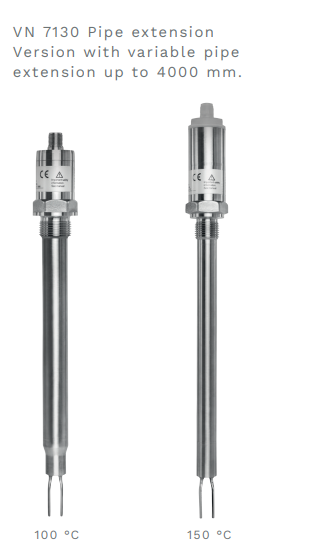

Vibranivo ® 7000
• U ltra compact design with 3 16L stain less stee l enc losure (IP69, type 6P)
• Measures most applications without need to adjust sensitivity setting
• Unique, highly visible LED signal with selectable colors
• Insensitive to materia l bui ldup, f low, turbu lences and air bubb les
Housing material Stainless steel (1.4404)
Material wetted parts Stainless steel (1.4404)
Surface quality Ra 3.2 μm (< 0.8 μm)
Protection rating IP69, type 6P (stainless steel lid – 1.4404, M12)
IP68, type 4X (opaque plastic lid – PC, M12)
IP67, type 4X (opaque plastic lid – PC, valve)
Process temperature Compact version:
-40 °C .. +100 °C | -40 °F .. +212 °F
with temperature extended shaft:
-40 °C .. +150 °C | -40 °F .. +302 °F
CIP / SIP max. 150 °C | 302 °F, duration continuous
Process pressure -1 .. +40 barg | -14.5 .. +580 psig
Sensitivity Density > 0.5 g/cm3 | 0.03 lb/ft³
Process ≥ G ½” | NPT ½”
connection ≥ G ¾” | M24 x 1.5 DIN 13 for hygienic adapter
≥ Triclamp DN25 (1″), > Flange DN25
Hygienic adapters Triclamp, Flush welding socket
Electrical connection M12 plug, Valve plug
Supply voltage/ 3-wire PNP: 10.8 .. 30V DC
Signal output 3-/4-wire (IO-Link, PNP, NPN, Push/Pull):
10.8 .. 30V DC
2-wire (without contact): 19 .. 230V AC/DC
Certificates/Approvals CE, UKCA, cFMus, EHEDG, WHG
