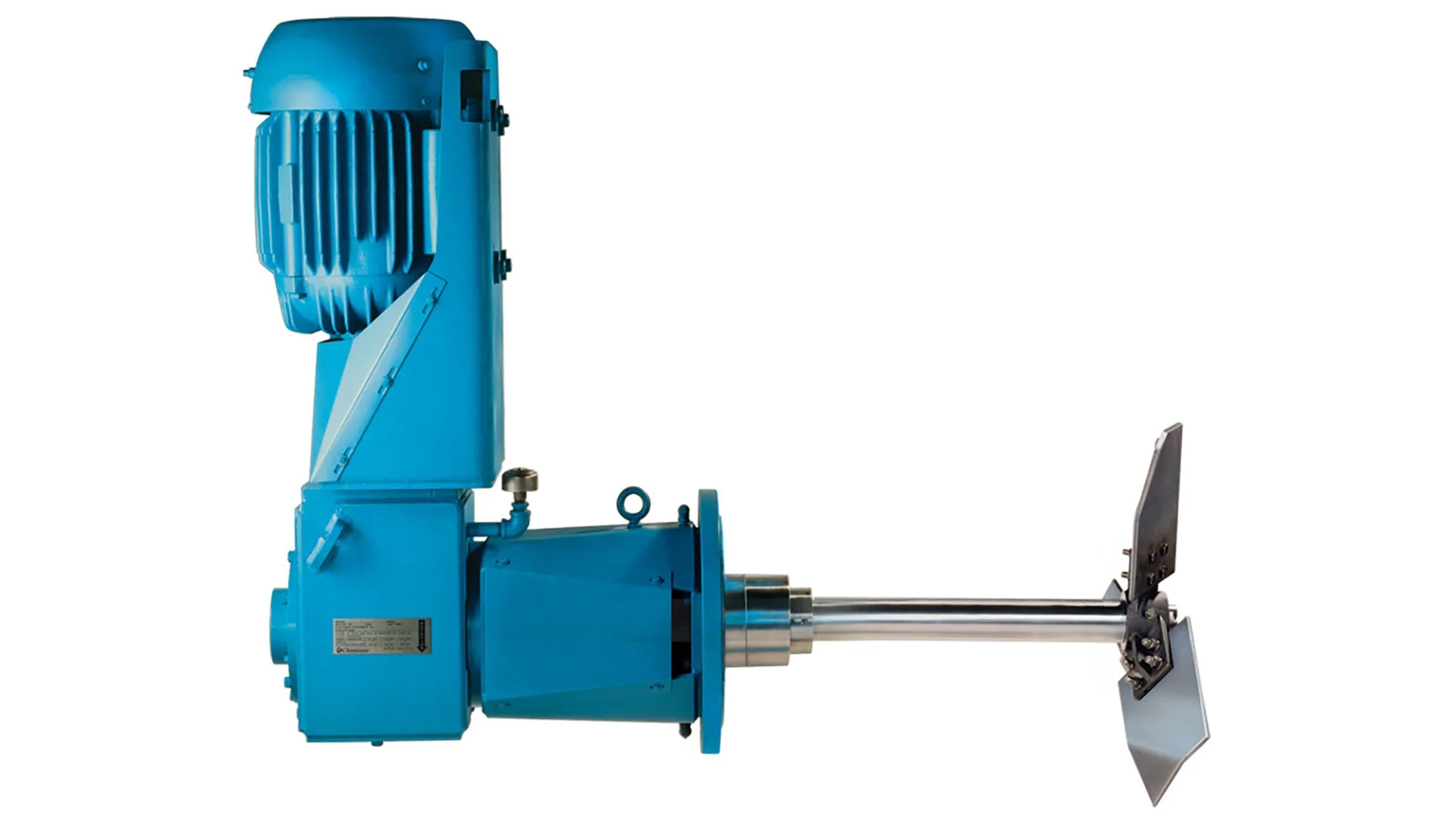

HS Side-Entering Agitators offer the same ruggedness, dependability and simplicity of design found in our other high-quality turbine agitators and mixers. At the heart of the HS Agitator is a right-angle drive exclusively engineered for side-entering agitator service.

Chemineer ® HS Side-Entering Turbine Agitators work efficiently when a tank is too large for convenient installation of a top-entering agitator, or where headroom is severely limited. Supporting a top-entering agitator on a large tank is often far more expensive than the installation of a side-entering agitator. Long shafts on extremely tall tanks can be eliminated for cost savings and design simplicity. For large tank installations, several smaller side-entering agitators may be more efficient and economical than a single, larger unit.

The HS Agitator is available in four standard sizes from 1 to 75 hp. Special designs, up to 250 hp, are available. The wide range of power selections and seal options, combined with two standard output speeds and accurately sized impellers, means that there is an HS agitator available for nearly every standard application. Consider HS Side-Entering Agitators for process applications involving continuous blending, heat transfer, mass transfer or solids suspension.

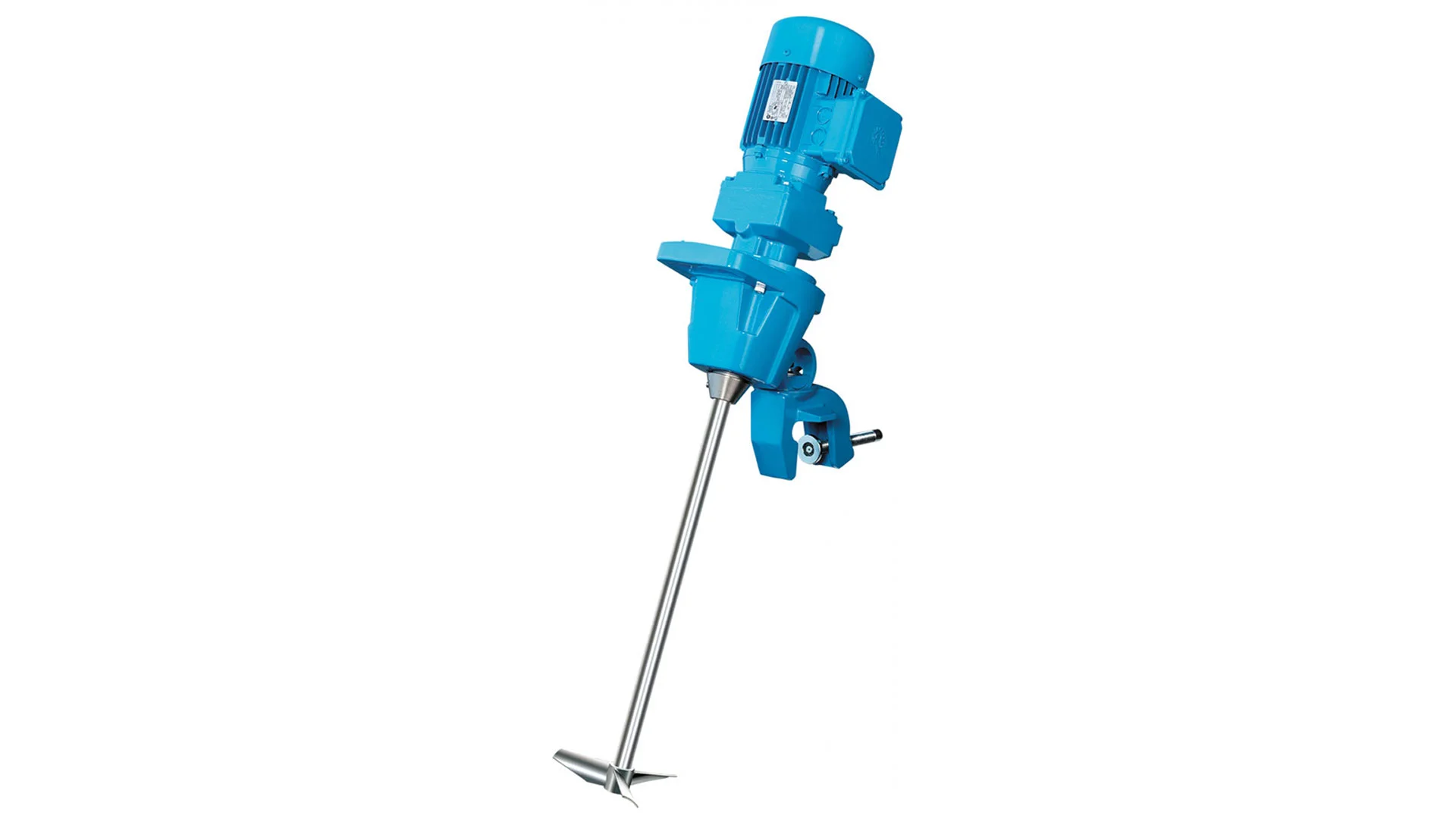

Chemineer’s XPress Portable Mixers offers quick, total support for mixing needs in the chemical and petrochemical, pharmaceutical, biotechnology, polymers and food and grain processing industries.

• 72-hour delivery

• 30-day “No Risk Trial”

• Total support for your mixing need

• 50+ years experience in mixer technology

• Industry standard IEC, off-theshelf motors from 0.18 to 1.5kw Features and Benefits Motors: Direct drive

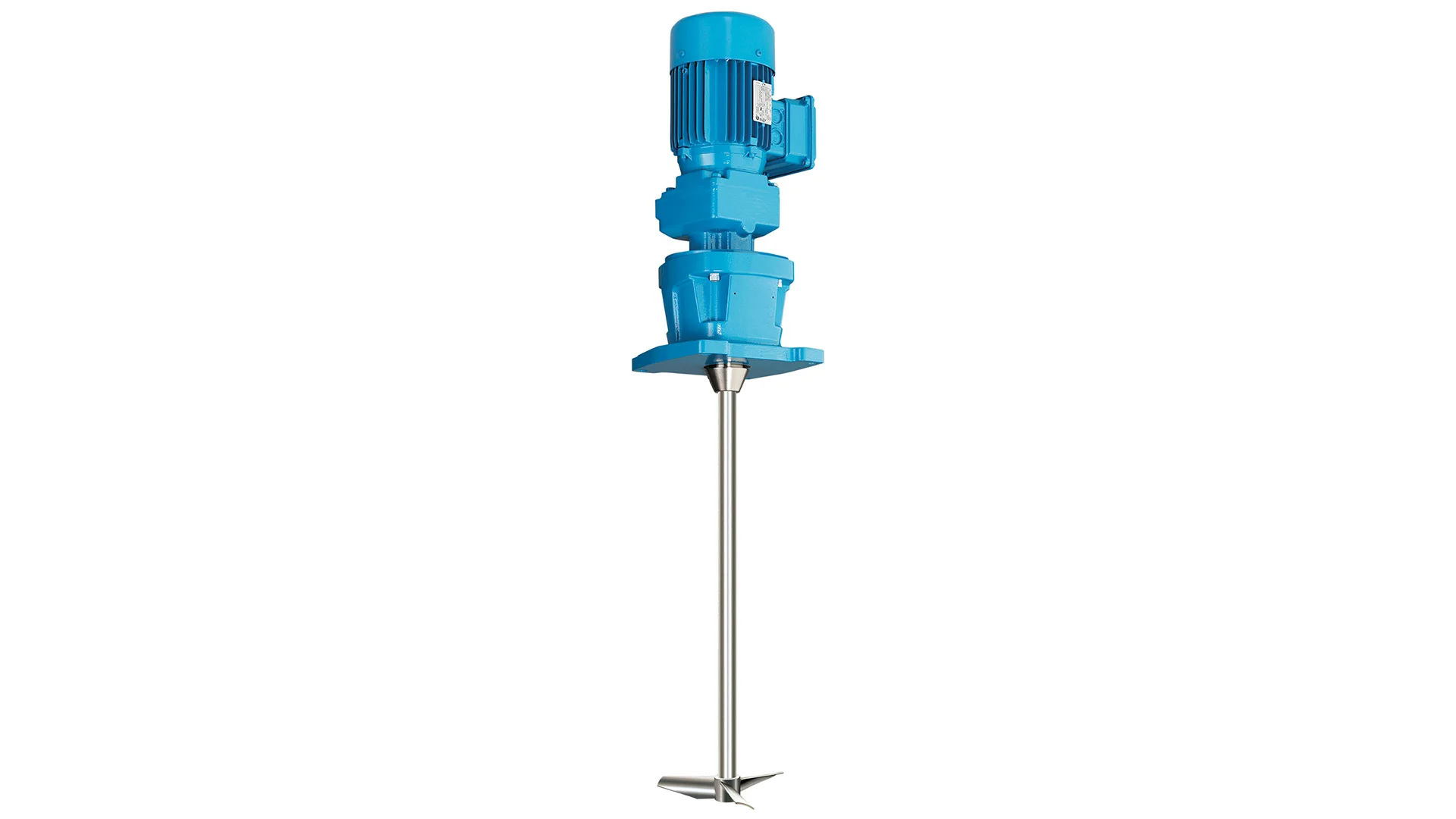

Chemineer offers a line of DT top-entering and portable mixers with direct-drive and gear-reduced designs for both open and closed tank applications.

Today’s applications demand high-performance process equipment accompanied by total support for customers’ mixing needs. To address these requirements, Chemineer offers a line of DT top-entering and portable mixers. Direct-drive and gear-reduced designs for both open and closed tank applications are available. Each unit features Chemineer’s renowned reputation for quality that has grown over the past 50 years. Superior materials of construction throughout, along with advanced modular designs give each one the strength, flexibility and reliability to perform to the same standards as all Chemineer’s agitators and mixers.

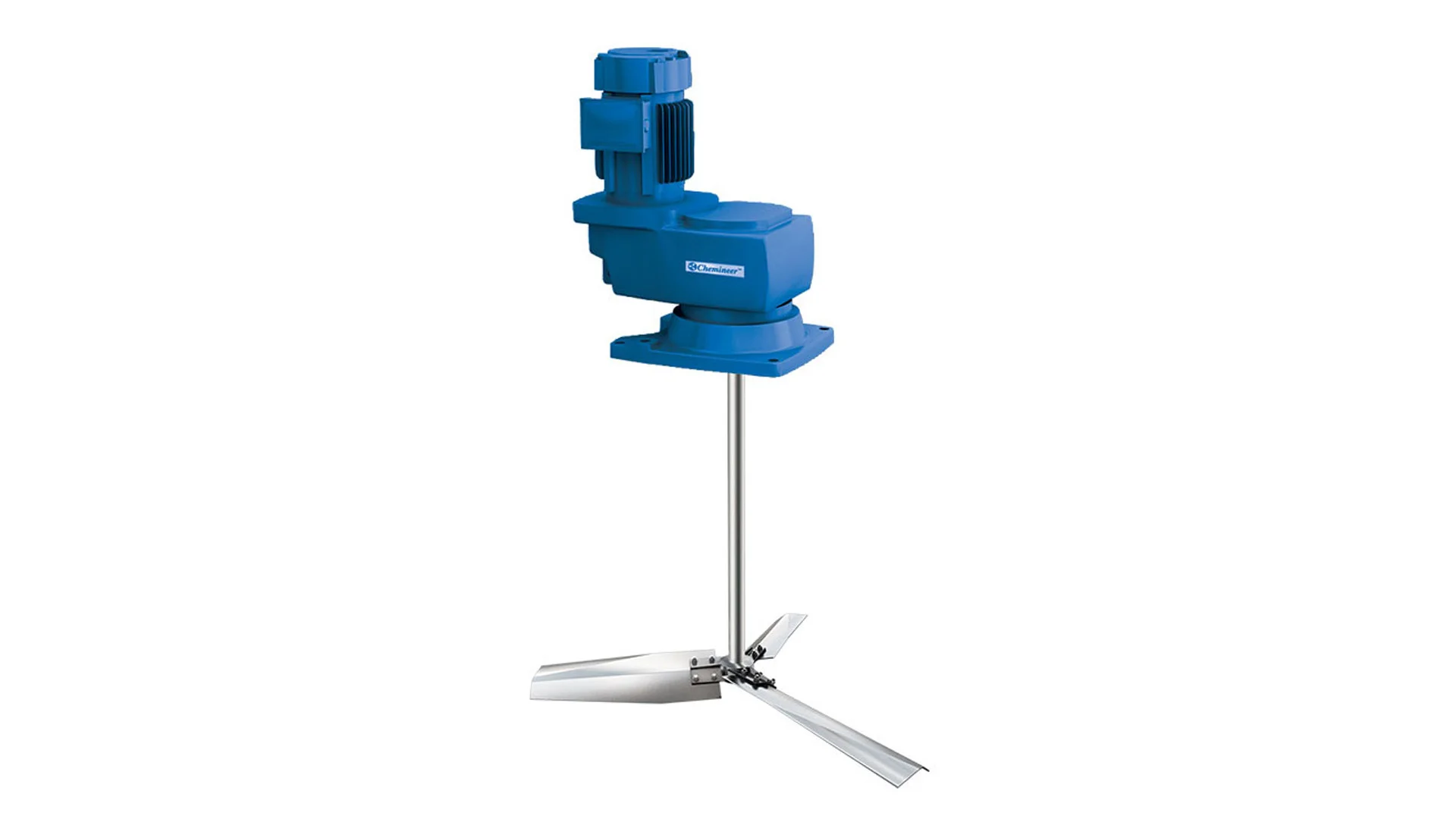

The MR agitators gearbox is a proprietary, parallel-shaft, helical gear design that features a minimum 30,000-hour L10 bearing life and an oversized output shaft for optimal performance and extended service life.

Our MR model is the latest addition to a line of high-performance, reliable agitators by Chemineer™. When our MR gearbox is expertly matched with a wide variety of Chemineer impellers and other system components, MR agitators are capable of economically meeting your blending, dispersion, and other mixing needs.

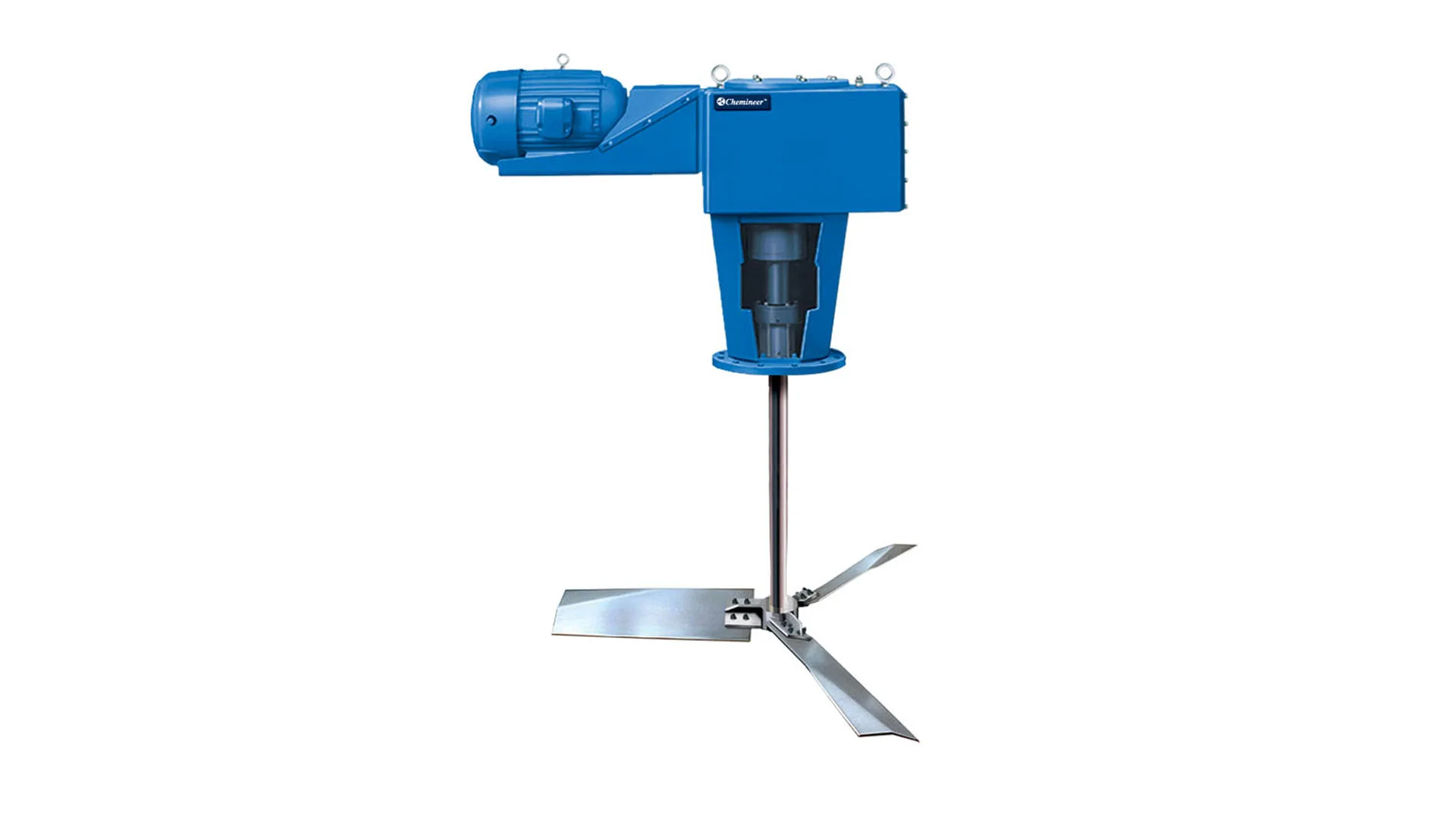

Our HT turbine agitators have earned a worldwide reputation for their long life, flexibility, and durability, making them the preferred agitators for harsh, demanding environments where peak performance is integral.

Our HT turbine agitators are robust, simple, and designed for ease of maintenance. Our HT turbine agitator is available in 13 standard drive sizes from 1 to 1,000 hp (0.75 to 750 kW)—even more for specialized applications. A wide selection of mounting methods, materials of construction, shaft seals, shafts, impellers, and accessories can provide you with the best turbine agitator for virtually any process.

The agitators feature a new, high-efficiency gearbox designed specifically for agitator service. Models are available in right-angle and parallel shaft configurations to meet specific application requirements—from critical chemical reactor systems to routine storage.

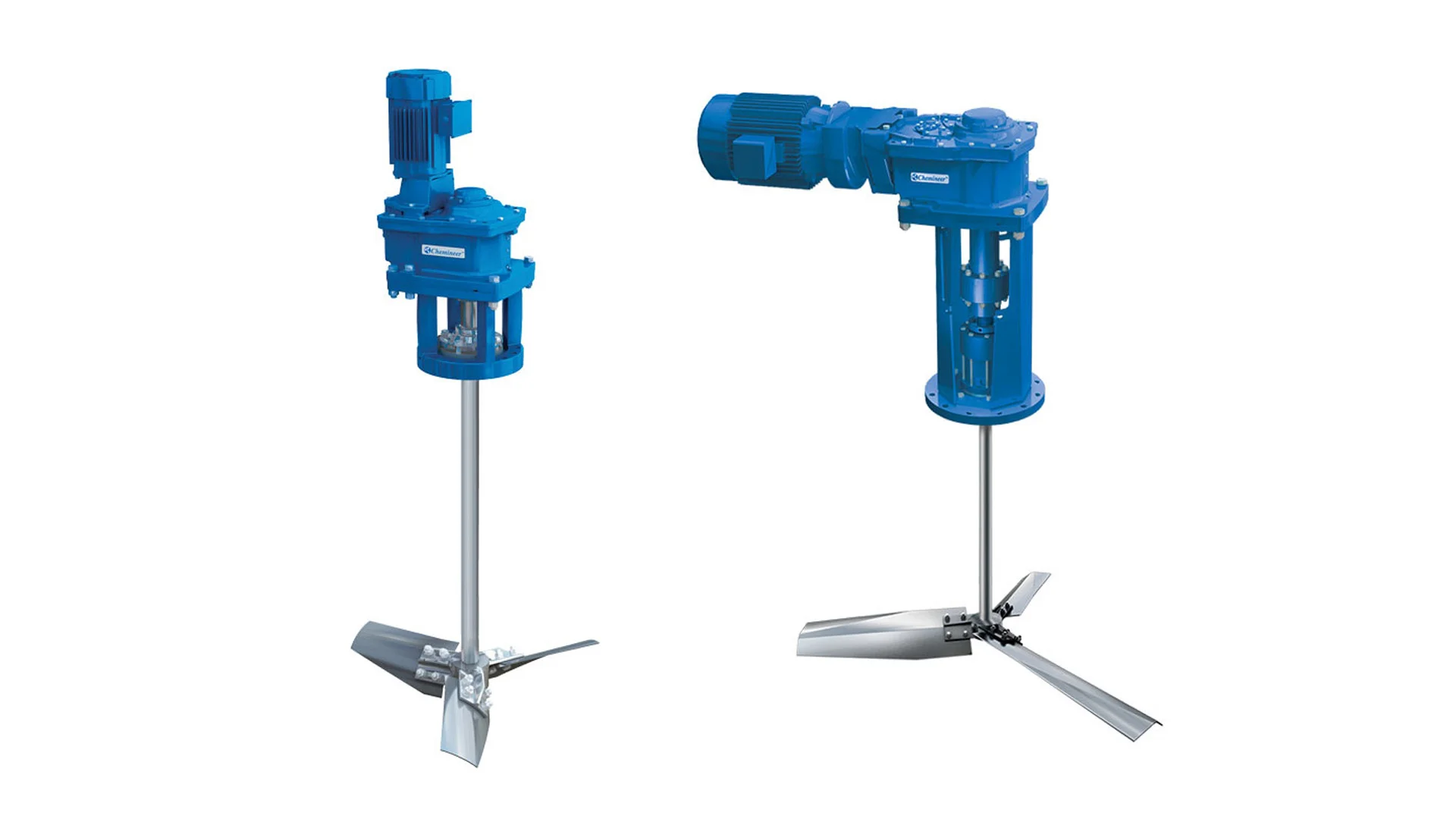

Our new agitators combine the proven benefits of the Chemineer HT and GT agitators into a modular design package that reduces the number of replacement parts that need to be carried in inventory by the customer. The Model 20 HT/GT agitators are designed to meet AGMA, OSHA, ANSI, IEC, DIN, EU, and ATEX standards and requirements.

Chemineer Model 20 HT/GT agitators also offer:

• ChemSeal

• Quick and easy seal change capability that saves time and reduces maintenance costs

• Variety of seal options for application versatility

• High energy efficiency due to an optimized gear design and lighter weight shaft diameter requirements

• Standard cast dry well seal eliminates lubrication oil leakage from gearbox this design is superior to maintenance-intensive, unreliable lip seals

• Reversible rotation to meet a variety of process requirements

• Reliable performance and long life resulting from the cast gearbox with heavy-duty output shaft and bearings

NSF/ANSI 61 and NSF/ANSI 372 certifiedThis product is Listed by UL. Representative samples of this product have been evaluated by UL and meet applicable safety standards.
